FINISHING · STAKINGGLRZ Vibration Staking Machine
Vibration staking machine that kneads and stretches leather between rows of pin and orifice plates — softer, fuller leather without beating marks.
CE certified UDEM, 2006/42/EC · certificate M.2025.206.C119628 · valid to 26 May 2030 · covers GLRZ 4-, 6- and 8-row models View certificate (PDF)
What the machine does well
Measures the area, thickness and softness of the leather and adjusts beating force and running speed automatically, for the best yield and softness. Shown at ACLE 2026 in Shanghai.

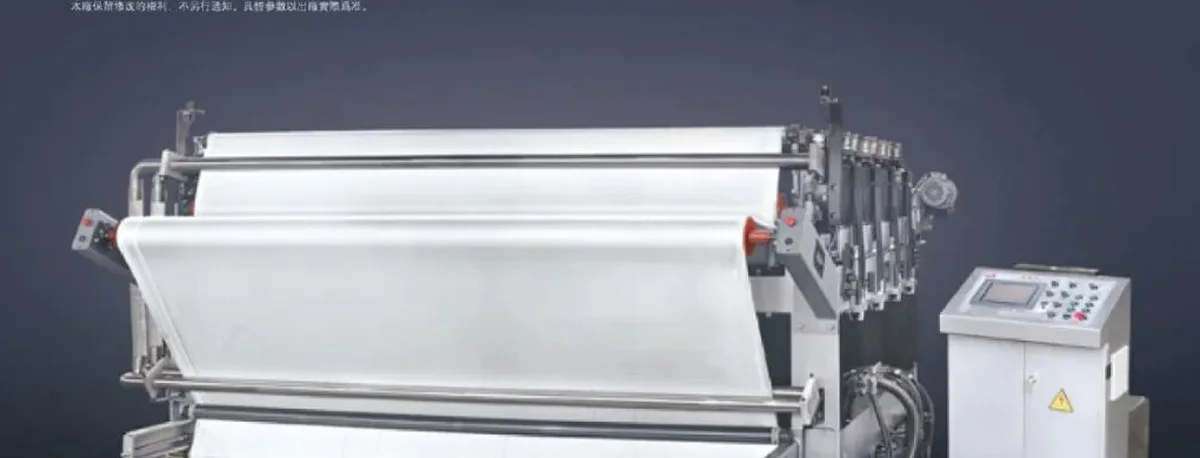

B: beating force set by hand. C: automatic force adjustment with PLC control. D: adds automatic lubrication, dust extraction and touch screen. E: adds a stretching mechanism to cut creases and raise yield.
Wet stretching softens the fibre of dyed leather and raises yield; dry staking softens crust and finished leather.

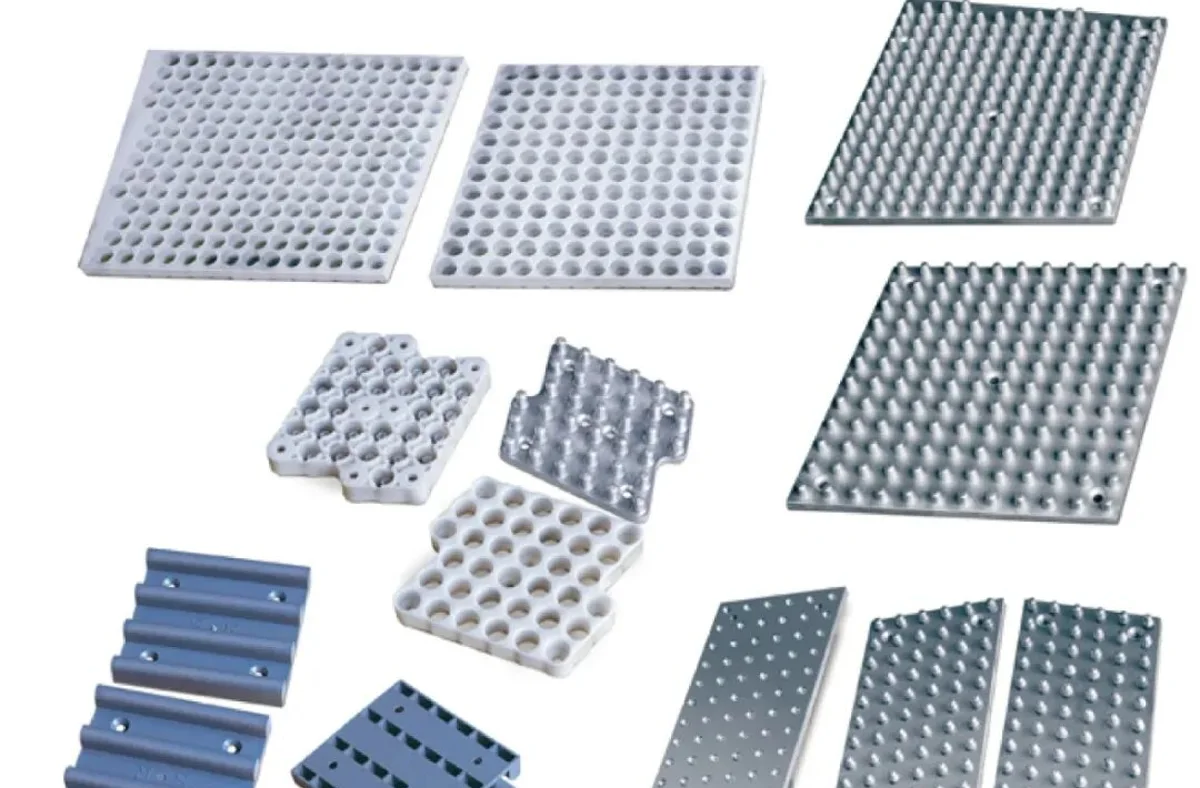

Coarser, wider-spaced pins for cattle leather, finer pins for sheep leather, with a nylon bar row to remove beating marks.

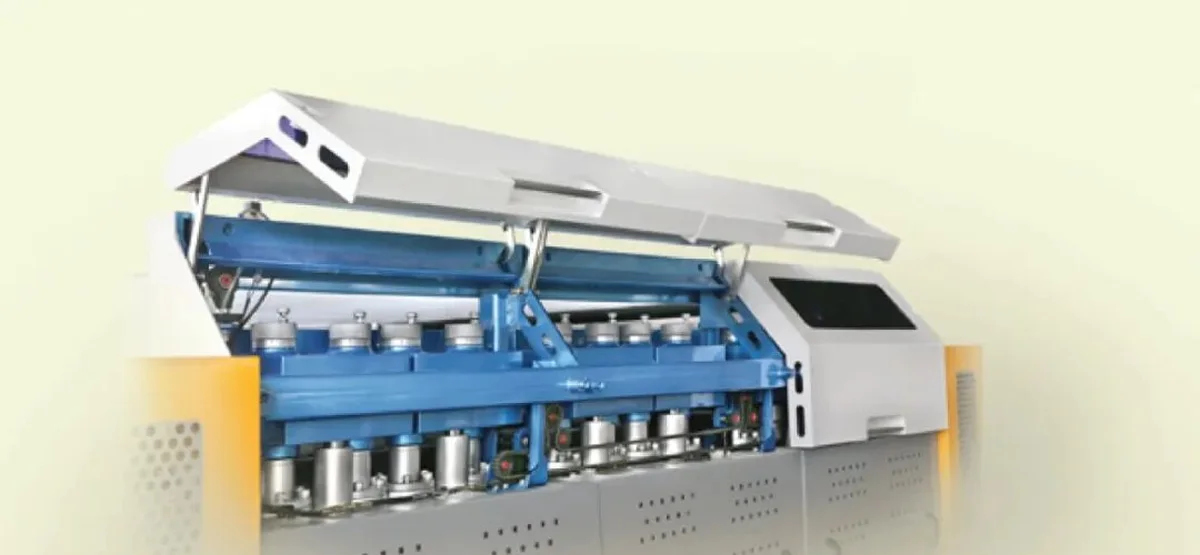

Our 6-row machine (since 2016) adds multiple stretching mechanisms, for flatter leather, higher yield and very few beating marks.
Chassis, pin-plate bed and orifice-plate bed are machined on CNC centres and heat treated in a deep-well furnace, so they stay rigid and true.
Bearing blocks, connecting rods and traction axle in nodular cast iron; a 150 mm precision-ground crankshaft; NSK bearings and YUKEN hydraulics.
A pressure detector stops the hydraulic pump once the set pressure is reached, instead of running it all day as on older machines.
SREE is the sole drafting organisation of China's industry standard for vibration staking machines, QB/T 2010—2011.
See it running
Clip from our company film. The full film is on the About us page.
Specifications
B series (manual force adjustment)
Swipe sideways to see all models →| Model | GLRZ-2R240B | GLRZ-2R280B | GLRZ-2R320B | GLRZ-3R240B | GLRZ-3R280B | GLRZ-3R320B | GLRZ-4R240B | GLRZ-4R280B | GLRZ-4R320B |
|---|---|---|---|---|---|---|---|---|---|
| Working width | 2400 mm | 2800 mm | 3200 mm | 2400 mm | 2800 mm | 3200 mm | 2400 mm | 2800 mm | 3200 mm |
| Motor power | 14 kW | 14 kW | 14 kW | 16.5 kW | 20 kW | 20 kW | 25 kW | 25 kW | 25 kW |
| Feeding speed | 0–15 m/min | 0–15 m/min | 0–15 m/min | 0–15 m/min | 0–15 m/min | 0–15 m/min | 0–15 m/min | 0–15 m/min | 0–15 m/min |
| Outline (L×W×H) | 2700×3100×1550 mm | 2700×3500×1600 mm | 2700×3900×1600 mm | 3500×3160×1620 mm | 3500×3560×1620 mm | 3500×3960×1620 mm | 3500×3160×1620 mm | 3500×3560×1620 mm | 3500×3960×1620 mm |
| Net weight | 10,500 kg | 11,500 kg | 13,000 kg | 14,500 kg | 16,500 kg | 17,500 kg | 15,500 kg | 17,500 kg | 18,200 kg |
C / D series (automatic force adjustment)
Swipe sideways to see all models →| Model | GLRZ-4R320C / 320D | GLRZ-4R340C / 340D |
|---|---|---|
| Working width | 3200 mm | 3400 mm |
| Motor power | 25 kW | 25 kW |
| Feeding speed | 0–15 m/min | 0–15 m/min |
| Outline (L×W×H) | 3500×3960×1650 mm | 3500×4160×1650 mm |
| Net weight | 18,500 kg | 19,500 kg |
6-row stretching and staking machine
Swipe sideways to see all models →| Model | GLRZ-6R3200 | GLRZ-6R3400 |
|---|---|---|
| Working width | 3200 mm | 3400 mm |
| Motor power | 38.2 kW | 38.2 kW |
| Feeding speed | 0–16 m/min | 0–16 m/min |
| Outline (L×W×H) | 4300×4300×1700 mm | 4300×4500×1700 mm |
| Net weight | 30,000 kg | 32,000 kg |
8-row vibration staking machine
| Model | GLRZ-8R320B |
|---|---|
| Working width | 3200 mm |
| Working frequency | 600 /min |
| Motor power | 48.5 kW |
| Feeding speed | 0–15 m/min, stepless |
| Outline (L×W×H) | 5300×4200×1632 mm |
| Net weight | 42,000 kg |
Figures from our standard specification sheets and printed catalogue. 8-row machines are built to order. Pin layout, rows and options are fixed in the technical agreement for each project.
